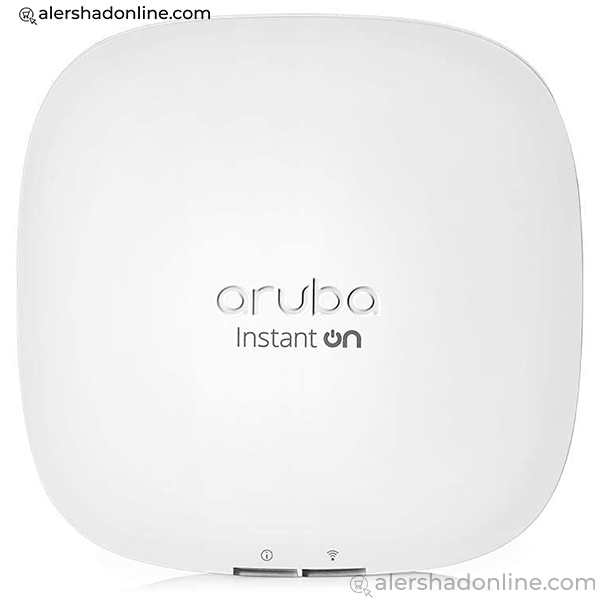

Aruba Instant On AP22 802.11ax 2x2 Wi-Fi 6 Wireless Access Point | R4W02A

• Antennas
  Down-tilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).
• Environmental & Reliability
  Operating temperature: 0° C to +40° C (+32° F to +104° F) MTBF: 795khrs (91yrs) at +25° C
• In the box
  Aruba Instant On AP22 Indoor Access Point Aruba Instant On AP22 Quick Start guide Combined Ceiling and wall rail mount clip Ethernet cable
• Industry Certifications
  UL 2043 plenum rating EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments) Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
• Interfaces

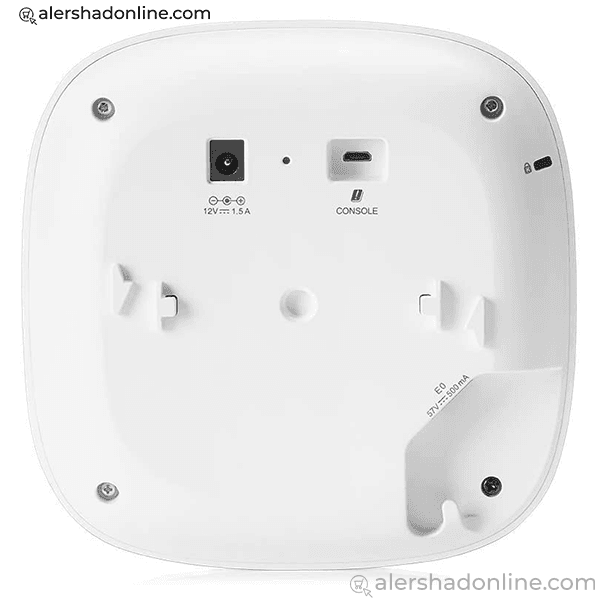

  Uplink Gigabit Ethernet port, with PoE-in support (802.3af) DC power connector (12V) Bluetooth Low Energy (BLE) radio LED status indicators (2) Reset/LED control button Kensington security slot
• Management Options
  Instant On mobile application (Android & iOS) Cloud Portal:Portal.ArubaInstantOn.comm
• Mounting
  The access point ships with a white mount clip that can attach to both wall and ceiling. You can also purchase a mount (R6P90A) for aesthetic design and looks of the APs, to blend seamless into your environment
• Physical Specifications
  160mm x 160mm x 37mm, excluding mount accessories Weight: 500g
• Power
  Power over Ethernet (POE): 802.3af (class 3) Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC) DC power (12V) Note: Power sources are sold separately unless you purchase the bundle SKU which comes with power options.
• Radios
  Dual radio for simultaneous dual-band operation 5 GHz 802.11ax 2×2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6) 2.4 GHz 802.11ax 2×2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
• Warranty & Support
  Aruba Instant On 2-year* warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is for as long as you own the products.
