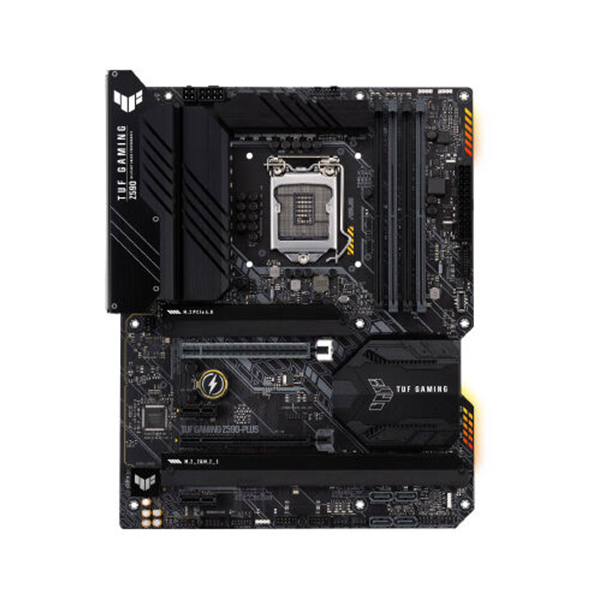

ASUS TUF Z590 PLUS GAMING MOTHER BOARD | 90MB16B0-M0EAY0

• Chipset
  Chipset Manufacturer Intel Northbridge Z590 RAID Supported Yes SATA Supported Yes
• Form Factor
  ATX
• Graphic Device
  Integrated Graphics Support
• Internal I/O ports
  SATA Connectors 6 x SATA III USB Connectors 1 x USB 3.0 Type-C header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports) Front Panel Connectors 1 x Front Panel 1 x Front Audio Cooling Fan Support 1 x CPU fan header 1 x CPU OPT fan header 1 x AIO Pump header 3 x Chassis fan headers Thunderbolt Port(s) 1 x Thunderbolt header Serial Connectors 1 x COM header Chassis Intrusion Connector 1 x Chassis Intrusion header Power Connector Port 1 x 20+4-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS Other Connectors 2 x M.2 slots, Key M, Type 2242/2260/2280/22110) 1 x M.2 slot, Key M, Type 2242/2260/2280 2 x 3-pin ARGB LED headers 2 x 4-pin RGB LED headers
• Memory slot support
  Memory Bus Speed 5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Memory Type DDR4 Maximum RAM 128 GB Memory Slot 4 x DIMM
• Panel I/O ports
  USB Ports 1 x USB 3.2 Type-C 2 x USB 3.1 2 x USB 3.0 2 x USB 2.0 DisplayPorts 1 x DisplayPort 1.4 HDMI Port 1 x HDMI 2.0 Keyboard/Mouse Combo Port 1 x PS/2 RJ-45 Ports 1 x RJ-45 Audio Line In Ports 1 x 3.5mm Jack Audio Line Out Ports 3 x 3.5mm Jacks Microphone In Port 1 x 3.5mm Jack S/PDIF Port 1 x S/PDIF Optical Out
• Sound
  Integrated Sound Realtek ALC S1200A
